SHINKAWA is
the vibration specialist. the vibration specialist. seeking "optimum" for our customers. seeking "creativity" for our customers. seeking "reliability" for our customers.
SHINKAWA, a total engineering company, has solid technology and know-how cultivated over many years since its establishment in 1927.
2025/06/13
Exhibition / Seminar
2024/06/12
2024/04/01
2023/09/11
2023/04/17
News / Topics

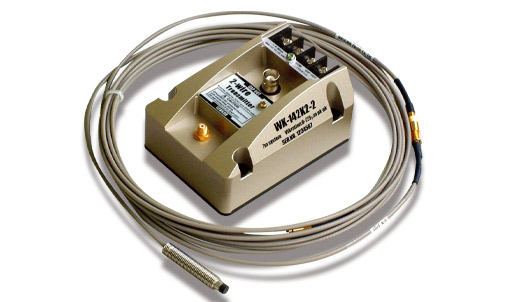

[ 2-Wire 4-20mA Vibration Transmitters ] Vibration/thrust conversion function incorporated into the conventional eddy-current transducer. The two wire power loop system for power and signal transmission achieves low cost vibration monitoring systems.
[ Piezoelectric Velocity Transducers ] Piezoelectric velocity transducers that measures casing vibration of turbines, compressors, pumps and other rotating machinery, and outputs voltage signals.
[ Piezoelectric Acceleration Transducers ] Compact piezoelectric Acceleration transducers. Responds to a wide frequency range.
[ Magnetic Pickups ] By mounting MS Series Magnetic Pickups close to the detecting gear on a rotating shaft, rotational speed can be measured without touching the rotor.

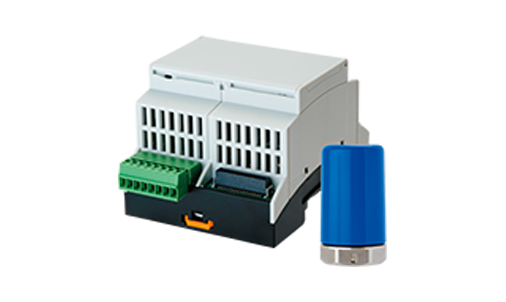

ZARK helps to improve your plant KPIs with better monitoring capabilities on rotation machine conditions with fewer unexpected stops, better in-time maintenance.
[ Noncontact Displacement/Vibration Transducers ] Used for measuring Shaft Vibration, Axial Position, Rotating Speed and Phase Mark (Phase Reference) from small rotating machinery to large critical machinery such as turbines and compressors in plants.
[ Linear Variable Differential Transformers (LVDT) ] Highly reliable Linear Variable Differential Transformers that can be used for measuring valve opening position, casing expansion and other long range displacement measurements.
[ Condition Monitors for Rotating Machinery ] A monitor used for monitoring Shaft Vibration, Axial Position, Eccentricity, Temperature, Rotational Speed, etc. 8 and 10 slot rack mount types, Power source built-in standalone type are available for flexibility.
[ Condition Monitors for Large Rotating Machinery ] A monitor designed to meet the requirements of International Organization for standardization (ISO) standards and the American Petroleum Institute (API) standard 670. The system covers the features for protective monitoring of critical rotating machinery in plants specified in the API Std.
[ Small Sized Condition Monitors for Rotating Machinery ] Compact size. digital communication. Can be optimized for your condition monitoring needs of general purpose rotation machines.
[ Signal Conditioners ] Signal conditioner that accepts signals from transducers installed, convert the signals to isolated 4-20 mADC or 1 to 5VDC signals.
[ Vibration Analysis & Diagnostic System ] infiSYS RV-200 is a machinery condition monitoring, analyzing, diagnosing system which accurately acknowledges and feeds back the condition of rotating machinery that plays a key role in production plants.
[ Portable Vibration Analysis System ] Accurately acquires conditions of rotating machinery in a plant and quickly feeds back to the operator. Because it is transportable, it will make acquisition of transient data during startup/shutdown and also data in abnormal condition much easier.
[ Rotating Machinery Condition Monitoring System ] Rotating machinery that serves as the heart of plant equipments. The vibrations on these contain various important information. As a sensor manufacturer, SHINKAWA has always studied for and been there to protect rotating machinery. Using the proprietary program based on our expertise, we provide a system to analyze/diagnose the valuable data.

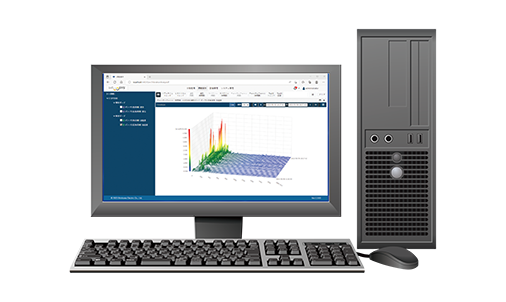

[ Integrated Monitoring Platform ] Integrated Platform of Rotating Machine Condition Monitoring Analysis System
[ Eddy Current Type Noncontact Displacement Transducers ] An eddy-current noncontact displacement sensor. Measures the displacement of the target (electrical conductor) to the sensor with high accuracy. It can measure static displacement to high-speed phenomenon, and can be applicable to measurement of displacement, thickness, eccentricity measurement, etc.
[ Touch-roll type Thickness Measurement System ] High accuracy eddy current, touch-roll type thickness measurement system. Use of eddy current method makes the system superior to any other measurement systems because it can provide highly accurate measurements of thickness of polymer films and rubber sheets continuously without being affected by ambient atmosphere with water, oil or dust etc.
Simple and Easy displacement measurement! Easy displacement measurement in FA and laboratory (test and research) scenes.
[ Noncontact Displacement Transducers ] Displacement transducer driven by +24VDC power supply. FKP-452F is a small sized and durable non-contact displacement transducer using a driver powered by +24VDC which is easy to apply in the instrumentation site.
The VG series is a high-temperature displacement transducer that enables displacement measurement in a high-temperature atmosphere up to 600℃. This is an eddy-current non-contact sensor that demonstrates its true value in measuring displacement and behavior in continuous-casting machine of the steel plant or various high temperature environments.
The KP series is the all-weather sensor for KM-Post* detection systems installed in railroad inspection/maintenance cars. * Targets installed between rails every 1 kilometer.
SHINKAWA have been creating a wide range of Special Sensors to meet diversified needs for measurement under severe conditions required in various industries.
Vibration data contains a wealth of information about the rotating machinery condition. Leveraging the latest IoT technology and our proprietary data analysis and diagnostic expertise, SHINKAWA provides remote assistance service to the request of customers.
This is a small sized rotor kit supported with journal bearings, and a perfect tool for teaching and learning fundamentals on rotor dynamics and vibration.
Pickup
Condition Monitoring of Rotating Machinery
SHINKAWA CMS（Rotating Machinery Condition Monitoring System）
