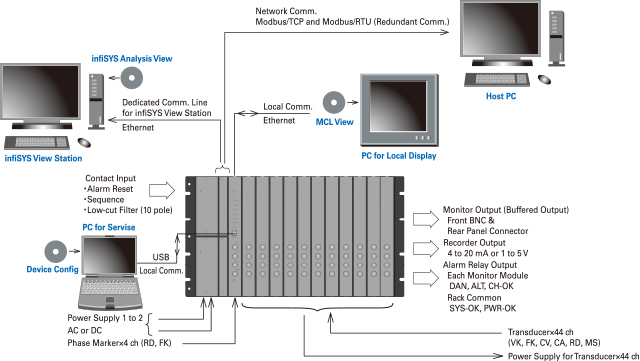

Products|Predictive maintenance|Condition monitor VM-7 Series A monitor designed to meet the requirements of International Organization for standardization (ISO) standards and the American Petroleum Institute (API) standard 670. The system covers the features for protective monitoring of critical rotating machinery in plants specified in the API Std. Product OverviewA monitor which is esigned in accordance with the American Petroleum Institute (API) standard 670 and ISO standard can be scaled to the size of the rotating machinery The fully digitalized monitor modules cover 17 measurement parameters used for TSI and other rotating machinery monitoring.The multi-functional modules can be configured on PC to meet monitoring needs.Features Communication modules – now certified for Achilless Level 2, an international security certification to assess network robustness of control devices. VM-741B, 741B communication modules have been tested and certified by Achilless, an industry leading benchmark for secure communication network of industrial devices. It provides cyber security solutions for cyber-attacks through internet as well as terminal devices, and this addition to our monitoring system will benefit our customers for stable operation of critical infrastructure such as petrochemical plants and power stations. *Achilless is a registered trade mark of GE Digital. One 19 inch rack handles up to 44 vibration channels Five monitor modules handle 17 monitoring parameters Monitor module configuration setup can be done on PC All modules can be removed/installed from the front, which allows for hot swap High reliability with redundant power supply and host communication By incorporating the analysis board, the system directly connects to the infiSYS RV-200 analysis and diagnostic system. System ConfigurationMonitor Modules Modules Slot No. P1 P2 C1 C2 0 1 2 3 4 5 6 7 8 9 10 11 VM-751B Power Supply Module (Primary) ○ VM-752B Power Supply Module (Secondary) ○ VM-742B Network Communication Module ○ ○ VM-741B Local Communication & Phase Marker Module ○ VM-701B Vibration/Displacement Monitor Module ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ VM-702B Absolute Vibration Monitor Module ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ VM-703B Tachometer & Eccentricity Monitor Module ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ VM-704B Temperature Monitor Module ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ VM-706B Rod Drop Monitor Module ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ VM-721B 18-Channel Relay Module ○ VZ-71 30mm (W) Blank Panel – *1 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ VZ-75 20mm (W) Blank Panel ○ ○ VZ-76 50mm (W) Blank Panel – *2 ○ *1 Local Communication & Phase Marker Module is installed in slot 0 with any rack design. *2 Primary power supply is installed in slot P1. Software ScreensBar graph screen (current value display)MCL View displays measurement values and other monitoring status of each module. (Software installation is required.)Device Config screenDevice Cofig allows users to configure the monitoring system in or out of the field. PC can be connected to the USB port of the rack.infiSYS View Station screeninfiSYS Analysis View displays measured values, analysis plots and diagnostic results. Note; optional analysis board must be specified when ordering to obtain analysis and diagnostic functions, i.e., VM-701B/PM0/ALY, VM-701B/PM1/ALY, or VM-702B/ALY. DownloadProduct Catalog:Large Rotating Machinery Condition Monitor VM-7 SeriesProduct Catalog:infiSYS Family UPDATED INFORMATIONSpecifications:VM-701B Vibration/Displacement Monitor ModuleSpecifications:VM-702B Absolute Vibration Monitor ModuleSpecifications:VM-703B Tachometer & Eccentricity Monitor ModuleSpecifications:VM-704B Temperature Monitor ModuleSpecifications:VM-705B 18-Channel Temperature Monitor ModuleSpecifications:VM-706B Rod Drop Monitor ModuleSpecifications:VM-707B Aeroderivative Gas Turbine Monitor ModuleSpecifications:VM-721B 18-Channel Relay ModuleSpecifications:VM-722B 9-Channel Relay ModuleSpecifications:VM-741B Local Communication & Phase Marker ModuleSpecifications:VM-742B Network Communication ModuleSpecifications:VM-75B Power Supply ModuleSpecifications:VM-76B Instrument RackSpecifications:VM-771B MCL ViewSpecifications:VM-772B Device config※The user manuals, outline drawings, and wiring diagrams can be downloaded at a “Document Download” Page which is opened by clicking “Documents” Tab or here.
