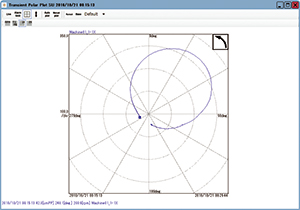

Products|Predictive maintenance|Condition monitoring system infiSYS RV-200 infiSYS RV-200 is a machinery condition monitoring, analyzing, diagnosing system which accurately acknowledges and feeds back the condition of rotating machinery that plays a key role in production plants. Product OverviewA vibration analysis & diagnostic system that fits various rotating machinery and supports safe operation and improved operational efficiency infiSYS RV-200 is a vibration analysis & diagnostic system that analyzes data for its phase mark and frequency and then plots analysis graphs required for vibration analysis. Advantages By optimizing plant operation, it supports customer’s productivity and reliability. Detects abnormal symptoms from vibration characteristics or subtle change in vibration. Reduces risks of unplanned production shutdown by taking proactive approach. Advanced diagnostics realizes assumption of causes and areas of anomalies and detailed analysis. Help users practice optimum, efficient maintenance. Features For all rotating machinery Applicable to all scales from small rotating machinery supported by rolling element bearings to large rotating machinery supported by journal bearings. High-speed and flexible system configuration While achieving high-speed data acquisition, the system can be configured with various monitors, including non-SHINKAWA monitors. Sophisticated data analysis and various graphs The software provides a variety of analytical graphs which are optimized for the type of machinery and condition, satisfying stringent demands of vibration analysts and other plant personnel. User-friendly operability and plotting functions Intuitive software interaction with drag and drop graph display manipulation, graph area switching tab, etc. System ConfigurationBasic SystemWhen used for large rotating machinery, it acquires phase mark signals and shaft vibration waveform, processes phase analysis and frequency analysis, and then displays the information in various graphs for further analysis. For small rotating machinery, infiSYS acquires acceleration vibration waveform of casing and the information is displayed with graphs based on the frequency analysis. Configuration Example for Large Rotating MachineryBased on the vibration waveform detected by shaft vibration sensors, the system provides vibration monitoring and anomaly analysis for rated-speed operation, and shaft behavior analysis for critical startup/shutdown. Configuration Example for Small Rotating MachineryBased on the vibration detected by acceleration sensors installed on the bearing housings, the system provides trend management and abnormality diagnostics not only on overall vibration but also on vibration of each fault frequency resulting from bearing failure. Applications Steam turbines Gas turbines Hydro turbines Electric generators Feed pumps Fans Blowers Compressors BOP machinery Rotating equipment critical to your facility Data Display ExamplesThis shows the vibration vector at the time of critical startup/shutdown of the machine. From this plot, the user can observe the balancing condition, vibration levels and critical speed during the startup/shutdown of the machine. Displayed data (Switchable display): 1X, 2X This allows over lay of current data on top of past data.This plot is used to analyze changes in frequency components that occur over time. Cascade plot can also be displayed with width (z-axis) as rotation speed to analyze changes in frequency components in relation to changes in rotation speed.This plot displays short term and long term chronological changes using a line chart. Displayed data (multiple selections are allowed): Rotation speed, GAP, OA, 0.5X amplitude, 0.5X phase, 1X amplitude, 1X phase, 2X amplitude, 2X phase, Not-1X amplitude, nX1 to nX4 amplitude and phase, Smax amplitude, various alarm setting values.The 3D illustration of rotating machinery diagram displays the rotation speed as well as the location and the vibration amplitude of each measuring point. For each machine, current values can be displayed in a list view.This plot composes signals from each X and Y sensor and displays the dynamic motion of the center of a rotating shaft. The Orbit plot helps to identify any abnormal status including imbalance, misalignment, oil whirl and oil whip.This plot displays the amplitude and phase in separate graphs with rotation speed used as the horizontal axis. From this plot, the user can see the vibration status and critical speed during the startup/shutdown of the machine. Displayed data (Switchable display): 1X, 2X This allows over lay of current data on top of past data.Case StudiesUnbalanced VibrationThe most common abnormal vibration is due to the mismatch between shaft center and mass center, due to manufacturing error or machine components missing. The characteristic of the vibration generates the rotation synchronous component (1X), which is sine wave or similar. Vibration becomes largest at critical speed. S-V PlotSpectrum PlotOil Whirl VibrationSelf-excited, unstable vibration typical for sleeve bearing supported rotating machinery. Possible causes include effects from the shape of the sleeve bearing, oil film characteristics, etc. Normally, this vibration appears at two or less times lower the critical speed, and the frequency is around half the rotation synchronous frequency (0.5X). S-V PlotSpectrum PlotMisalignment VibrationVibration that occurs when the shaft centers of driving rotating machinery and its associated driven rotating machinery are not properly aligned. Typically the vibration includes rotation synchronous frequency component (1X) and harmonic components (2X, 3X). Orbit & Waveform PlotSpectrum PlotOrbit & Waveform PlotSpectrum PlotLoss of Rotor ComponentPolar plotWhen a piece of rotor component is lost/flies off, unbalanced vibration condition suddenly changes. The typical phenomenon includes sudden changes in the amplitude and phase angle (vibration vector) of the rotation synchronous frequency component (1X).User-friendly OperabilityinfiSYS RV-200 (hardware & software) has a simple user interface, that is easy and instinctively operated by most plant personnel. Quick learning of graphic display. Drag & DropFrom tree at left to display area at right, desired plots can be displayed anywhere you want. Tile DisplayInstant pickup of desired channel plot from tile display window. Channel plot specific window opens with one click. Page Switching TabDesired graph display page can be displayed simply by switching the tabs. A step to create a new page is also simple. (Up to 20 pages.) DownloadProduct Catalog:Analysis and Diagnostic Systems infiSYS RV-200Product Catalog:infiSYS Family UPDATED INFORMATIONSpecifications:infiSYS RV-200 SystemSpecifications:AP-2000D infiSYS Dada Acquisition UnitSpecifications:AP-2000H infiSYS Dada Acquisition UnitSpecifications:DP-2000B infiSYS Dada Acquisition UnitSpecifications:VM-772B Device ConfigSpecifications:VM-773B infiSYS Analysis ViewSpecifications:VM-774B infiSYS Remote ViewSpecifications:VM-781B infiSYS Diagnostic SoftwareSpecifications:VM-783B infiSYS Report SoftwareSpecifications:VM-784B infiSYS OPC Client Software※The user manuals, outline drawings, and wiring diagrams can be downloaded at a “Document Download” Page which is opened by clicking “Documents” Tab or here.
